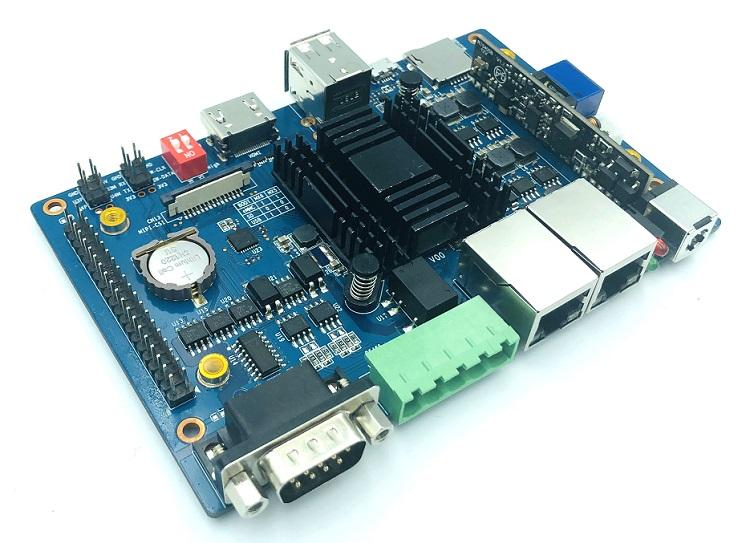

PCBA
XSJ ELECTRONICS make thousands of different PCB+PCBA for all different types of applications. Our support extends to the full range of materials and strong technical capabilities.
We offer the following PCB assembly services:Quick-turn prototype printed circuit boardassembly
Turn-key printed wiring board assembly
Partial turn-key PCB assembly
Consignment assembly
RoHS compliant lead-free PCB assembly
Non-RoHS assembly
Conformal coating
Final box-build and packaging
PCB ASSEMBLY PCBA
Thru-hole and mixed technology (SMT with Thru-hole)Passive Components as small as 0201 package, Ball Grid Arrays (BGA) as small as .4mm pitch with X-Ray inspected placementsOur Capability
Professional on PCB & turnkey PCBA solution, over 15 years rich experience of manufacturing.
Our Services
- High-quality SMT & THT production
- OEM & ODM
- PROTOTYPING
- Procuring components (BoM management)
- Selective coating and varnishing, potting technology
- Laser marking, DMX-Code, labels
- Sample production & complex testing to support the development cycle
- PCBA burning program
- ICT & FCT & Aging test
- Packaging concepts & design
- 100% optical and functional testing
MIN Assembly space 0.1mm
MIN QFP SPACE 0.3MM
MIN PACKAGE 0201
MIN/MAX BOARD SIZE 50*50MM - 350*550MM
Assembly Registration +/-0.01MM
Assembly Sort QFP SOP PLCC BGA ..
Assembly capability 1206,0805,0603,0402,0201
*Notes :Unless otherwise specified, all boards are manufactured under IPC-A-600F class II specifications and guidelines.
